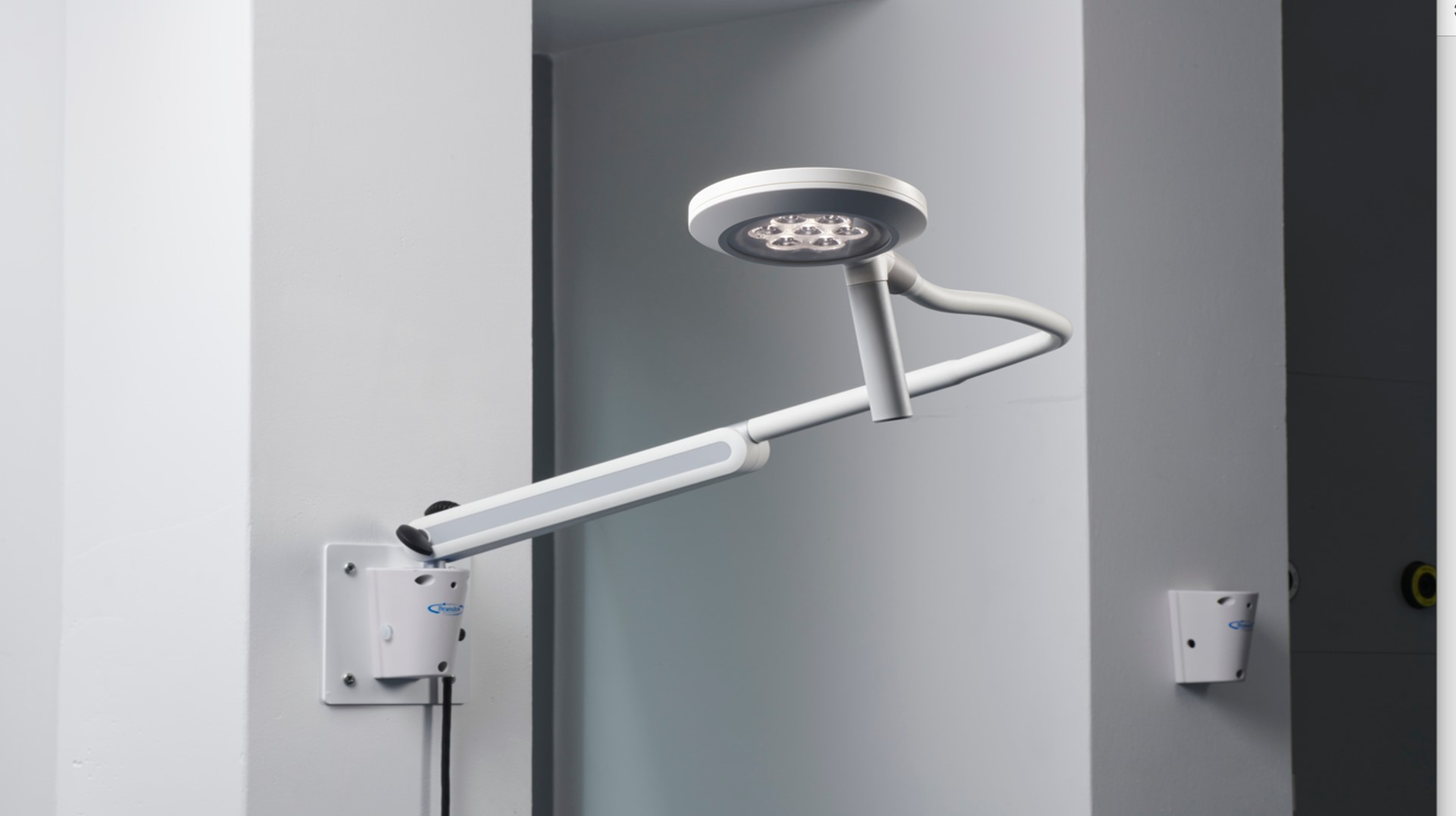

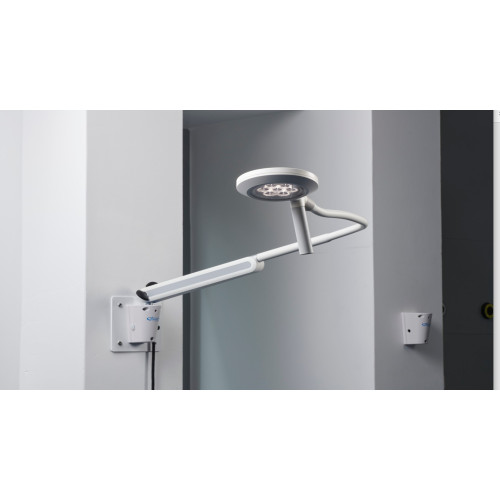

Coolview CLED10 examination lights provide excellent lighting performance to suit your healthcare speciality and budget.
Professional Light Quality
Thanks to its unique diamond optics, Coolview CLED10 provides 50,000 Lux of intense bright light at 0.5m perfect for medical procedures.
Large Illuminated Area
A large illuminated area of 180mm makes it easy to examine large areas of tissue.
Ergonomic
The CLED10 offers a 280° lamp head rotation with an ergonomic handle offering control of the light.
Flexibility
The flexible arm ensures positional accuracy and good durability. The sealed construction protects against contamination.
Colour Corrected Light Source
The colour corrected light source with a colour temperature of 4,400°K allows for accurate representation of tissues during examination.
Infection Control
Sealed head to protect from dust and light liquid ingress.
High Colour Rendition
CLED10 reproduces all of the visible colours naturally and accurately. The high Ra of >93 describes the exceptionally high quality of white light whilst the high R9 of >90 measurement describes how it accurately reproduces visible red.
Technical & Performance Information
Unless otherwise stated, all linear dimensions in mm, angles in degrees (±5º) and weights in kg
| Mount Type | Backplate Wall Mount |
| Lamphead | CLED10ST |
| Weight (kg) | 1.6 |
| Type of luminaire (to BS EN 60601-2-41) | Examination (Luminaire for diagnosis) |
| Medical Device Classification | I |
| Electrical Classification | II |
| Conformity | CE (EU MDR 2017/745); BS EN 60601-1; BS EN 60601-2-41 |
| Additional Information | Power Lead supplied loose with UK plug |
| Mount Size HxWxD (mm) | 130 x 130 x 70 |
| Weight of Mount (kg) | 0.5 |
| Fixing Type | Permanent |
| Available Rotation Lateral about Spindle (±5°) | 180° |
| Interface orientation | Vertical Up |
| Colour | White / Grey |
| Material | Steel/Plastic |
| Lamphead/Arm Data | CLED10ST |
| Light On/Off switch location | Rocker Switch on Arm |
| Fastener type | Ø 16 mm Pin |
| Base Joint Type and Angle (°) | Articulating 180° |
| Base Rotation about fastener (°) | 360 (max) |
| Arm Reach | 870 |
| Lamphead Diameter (mm) Approx | 130 |
| Lamphead Pitch (°) | n/a |
| Lamphead Roll (°) | 280° |
| Lamphead & Arm Weight (kg) Approx | 1.1 |
| Additional | With Grip Handle |
| Power Supply Lead(s) [plug] | 1.8 m [UK] |
| Lamphead Photometric Data [*-10% / +20% ] | CLED10ST |
| Central Illuminance @ 0.5 metre (Lux max) * | 50,000 |
| Field diameter D10 @ 0.5 meter (mm)* | 180 |
| Field diameter D50 @ 0.5 meter (mm)* | 100 |
| Nominal working distance from lamphead m | 0.5 |
| Colour rendition Ra (Av R1-R8) | >93 |
| Colour rendition R9 (red) | >90 |
| Colour rendition R13 | 97 |
| Colour temperature (K)* | 4,400 K |
| Number & Type of lights per Lamphead | 7 LED |
| LED life (hours) | 50,000 |
| Primary Power Supply | 100-240VAC 50/60 Hz |
| Secondary Power Supply Unit | Integral |
| Power Consumption @ Nominal Intensity | 10.5-13 W |
| Ingress Protection Rating | IP20 |
Service Interval: 12 months
