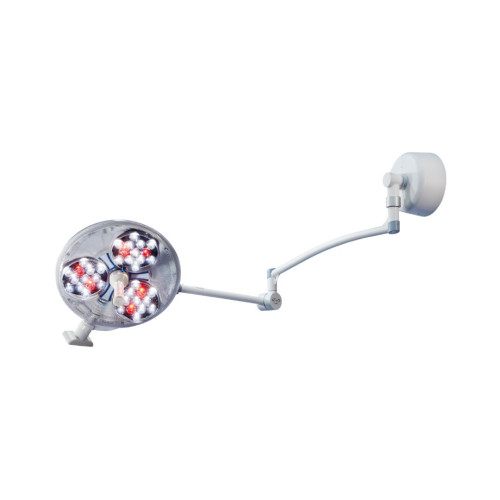

Astramax AM30 Wall Mounted Light
The Astramax HD-LED high performance compact surgical light offers a breakthrough technology with vastly better performance than standard definition LED or conventional surgical lights.
Full Spectrum Colour Rendition
The surgical lighting has near perfect colour rendition across the full visible spectrum. Natural white light picks out all the visible colours for your eyes so you can clearly see without eye strain.
- Easy to distinguish small differences in tissue
- All the colours are strong and vibrant
- Reduced eye strain by making the light do the work instead of the eye
Red Balance Control
With the highest R9 red colour rendition, Astramax HD-LED provides optimum visualisation of red tissues. Red balance enhancement compensates for our natural weakness in distinguishing shades of red, and is user-adjustable to fine-tune the light to match our own red vision and the surgical conditions.
- Enhanced visualisation of red tissues
- Improved differentiation between tissues of similar colour
- You can adjust the light colour to match your own optical colour response
Fat Beam Illumination
Higher light flux ensures bigger illuminated fields and more light across the full width of the illuminated area.
- High light intensity across the full illuminated area for uniform vision
- Avoids visual distraction by reducing high contrast in the illuminated area
- Adjust the beam size to suit your working area to eliminate peripheral distraction
Slim, Compact and Powerful
Ultra slim and light-weight lamp head enables smooth, fast and precise positioning during procedures. Astramax HD-LED is a compact yet powerful surgical light with an impressive 150,000 Lux output comparable with much larger surgical lights.
Economical Light with Long Life
Astramax HD-LED provides exceptional performance at a competitive price with minimal running costs. Using less than 50 watts of power and with >60,000 hours of LED life which equates to more than 20 years of normal use, Astramax HD-LED continually saves money on energy and maintenance.
Environmentally Friendly
HD-LED lights use up to 70% less energy than conventional medical lighting. HD-LED lights have the highest lighting performance with the smallest energy consumption. LEDs are also mercury free, do not contain CFCs, POPs, VOCs, halogens or other harmful chemicals and are ROHS compliant.
Large Illuminated Area with Shadow Control
A large illuminated area of up to 320mm diameter makes it easy to illuminate large areas of tissue to target the light onto the wound. By spreading the LEDs across the lighting surface, a much better distribution of light is provided from the lamp head. This enables excellent shadow control to under-light obstructions during procedures.
Large Movement Range
Astramax HD-LED lamp head is mounted on multi-movement arm mechanisms capable of positioning the lamp head within an exceptionally wide envelope of movement. The lamp has 5 rotations to allow easy positioning of the light beam from any angle.
Infection Control
The lamp head is sealed to IP54 to protect from ingress of dirt and fluids. The smooth surfaces of the lamp head allow for easy disinfection. The lamp head is manoeuvred using a sterilisable handle. Disposable handles are also available as an option.
Service Interval: 12 months
Warranty: 12 months
Please note this item is non-refundable. Please contact Customer Care for the lead time on this item, usually 5–6 weeks.
Installation is NOT included. We recommend that an experienced medical device engineer performs the fitting.
Technical & Performance Information:
Unless otherwise stated: all linear dimensions in mm, angles in degrees (±5°) and weights in kg
| Mount Type | Wall + Swing-Spring Arm |
| Lamphead 1 | AM30 |
| Weight (kg) | 14.7 |
| Conformity | CE (EU MDR 2017/745) |
| Type Of Luminaire (BS EN 60601-2-41) | Surgical Luminaire - Minor (Treatment) |
| Medical Device Classification | I |
| Electrical Classification | I |
| Electrical Conformity | BS EN 60601-1; BS EN 60601-2-41 |
| System Max Power [VA] | 44 |
| System Power Consumption @ 100% Intensity | 37W |
| Number Of Arms | 1 |
| Mounting Height [Wall Bracket Only] | 2060 |
| Weight Of Mount (Including Suspension Arms) | 9.7 |
| Arm 1 Lengths Horizontal/Suspension Arm [Total Radius] (mm) | 800/750 [1550] |
| Arm 1 Lateral Rotation Of Horizontal about Central Stem Spindle (±5°) | 180° |
| Arm 1 Lateral Rotation of Spring Arm about Horizontal Spindle (±5°) | 360° |
| Suspension Arm Angle Max Vertical Adjustment Up (±5°) | 45° |
| Suspension Arm Angle Max Vertical Adjustment Down (±5°) | 45° |
| Power Supply Unit Type | 1 off Medical Grade 150W 24V |
| Supply Voltage | 100 - 240V AC 50/60Hz |
| Central Illuminance @ 1 metre (Lux max ±10%) | 150,000 |
| Field Diameter D10 @ 1 meter (mm) | 90 to 320 (Variable) |
| Field Diameter D50 @ 1 meter (mm) | 90-160 |
| Illuminated area (cm2) | 760 |
| Nominal Working Distance from Lamphead m | 1 |
| Colour Rendition Ra (Av R1-R8) | ≥95 |
| Colour Rendition R9 (red) | ≥95 |
| Colour Temperature (ºK) | 4300º K |
| Adjustable Colour (Red Balance) (ºK) | 3100º to 5000º K |
| Number & Type of Lights per Lamphead | 39 HD-LED® |
| LED Life (hours) | >60,000 |
| Comfort Halo @ 1m (mm) | N/A |
| Radiant Energy | 3.31mW/m² per Lux |
| Solid State Focusing Control | via Handle |
| Intensity Control | on Keypad |
| Shadow-Less Light Technique | Multiple LED elements |
| Electronically Dimmable Light Intensity Range | 5-100% |
| Infrared Content | 0 |
| UV Content | 0 |
| Temperature Increase in Surgeon’s Head Area | <1°C |
| Removable Sterilisable Handle | Yes (Sterilisable at 137°C) |
| Anti-Microbial Surfaces | Yes |
| Light On/Off Switch Location | Keypad on Lamphead |
| Ingress Protection Rating | IP54 |
| Lamphead Diameter (mm) Approx | 480 |
| Lamphead Weight (kg) Approx | 5 |
| Lamphead Pitch (°) | 290° |
| Lamphead Roll (°) | Unlimited 360° |
| Lamphead Yaw (°) | N/A |
| Power Supply Unit Requirements | 50W 24V DC |
| Power (VA) - Nominal [Max] | 30.6 [44] |
| Power Consumption (W) - Nominal [Max] | 22.15W [37W] |
| Keypad Orientation | Horizontal |
