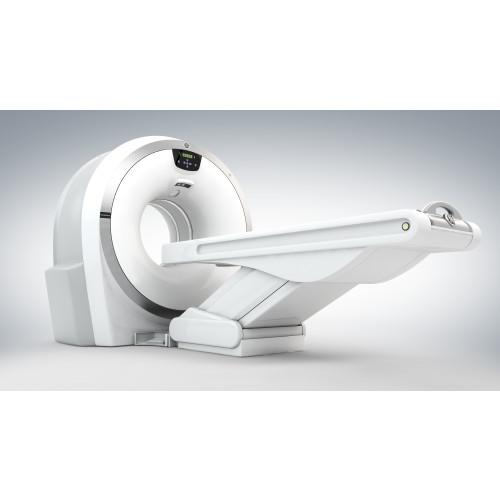

GE Revolution ACT Scanner
Using the latest detector panel technology the Revolution ACT consistently produces images with high resolution and quality. The latest liquid bearing tube provides faster cooling and extends lifespan to reduce maintenance.
- 16 slices from 0.625mm to 10mm to cover most veterinary applications 20mm detector provides fast scan times at up to 35mm per second
- High resolution with a spatial resolution of 0.28mm
- New scintillated detector technology 3x more sensitive than older CdWO4 detectors
- Low 3 phase electrical power requirement of 40kVA
- Online system health monitoring to reduce unplanned maintenance
Technical Specifications
- Detector type: Fan Beam
- Detector size: 20mm
- Number of slices: 16/32
- Slice thickness: 0.625mm to 10mm
- Rotation speed (min): 0.98 seconds
- Gantry bore diameter: 65cm
- Field of view: 43cm
- Reconstruction speed: 22 fps
- Height adjustable table: Y 441-900mm
- Scannable range: 1,350mm
- Scan speed (Max coverage): 35mm/s
- Resolution: 0.28mm spatial resolution
- Focal spot size: 0.8 x 0.6mm
- Power range: 80 - 140kV
- Maximum mA: 333mA equivalent with ASIR
- Maximum power: 40kW equivalent with ASIR
- Power requirements: 3 Phase 40 kVA
- Minimum recommended scan room size: 4.7m (I) x 3.0m (w) x 2.3m (h)
- Weight: 1,510kg
- Small animal: Yes
- Exotic: Yes
- Equine: No
