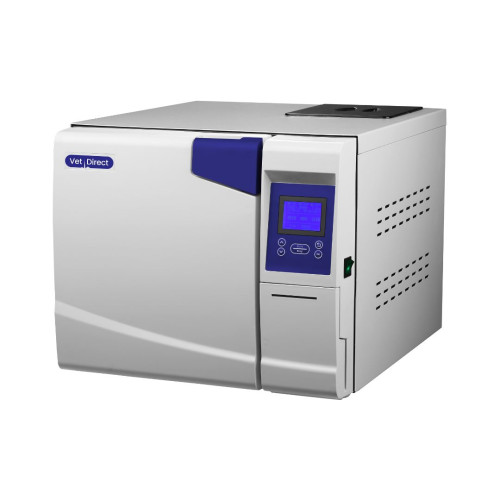

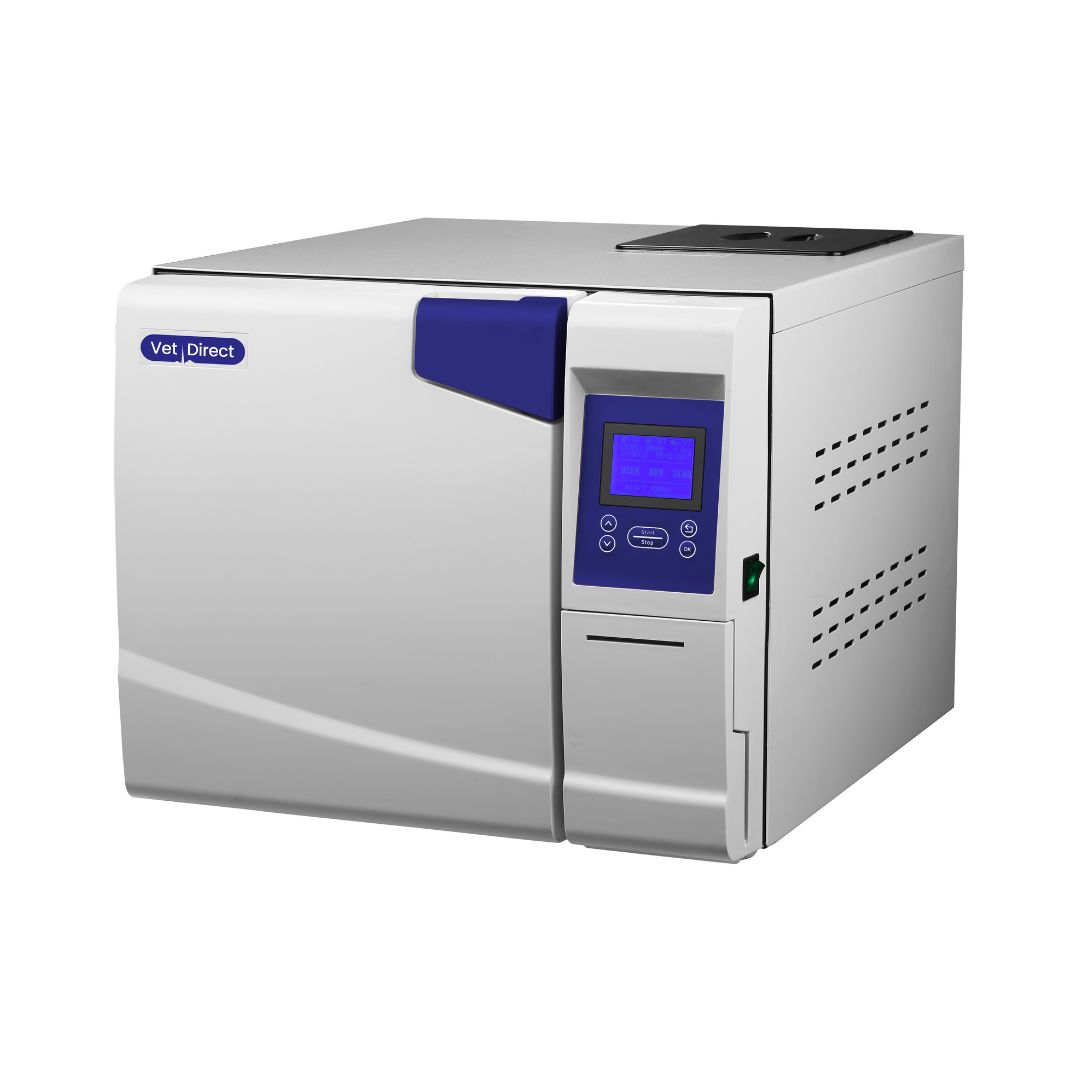

Vet Direct Autoclave 22L
Enjoy peace of mind that your medical instruments are sterile and safe for reuse, allowing you to concentrate on what you do best: providing top-quality medical treatment for a wide range of patients.
This front loading, fully automatic, 22L autoclave pressure steam steriliser with seven pre-set sterilisation programs and one custom program offers convenience, reliability, and outstanding performance at an unbeatable price.
Features
Category: | Class B |
---|---|
Working Type: | Front loading, fully automatic |
Design: | Modern, no screw design |
Sterilisation program: | 7 pre-set |
Custom program: | 1 |
Cleaning program: | 1 |
Vacuum testing program: | B&D/Helix |
Data output: | Printer & USB Output (optional extra) |
Safety: | Double lock |
Water quality detector: | Yes |
Steam generating: | Separated steam generator |
Water tank: | 2 x 4L plastic:easy open, easy to clean |
Dimensions
Net weight: | 55kg |
---|---|
Gross weight: | 63kg |
Dimensions: | 65cm x 50cm x 43cm |
Package size: | 77cm x 57cm x 51cm |
Chamber: | 44cm deep x 25cm |
Technical Data
Certification: | CE 1023, ISO 13485 |
---|---|
Safety standard: | BS EN 13060:2004 + A2:2010 |
Frequency: | 50Hz |
Plug: | 3 pin plug |
Wattage: | 2.4 KW |
Sterilisation temperature: | 105 - 134°C |
Max working pressure: | 0.21 - 0.23 MPA |
Chamber material: | Stainless steel 304 |
Screen display: | LCD 6 x 4.25cm |
Language available: | English, Italian, German & Chinese |
Lock system of door: | Mechanical + electrical lockers |
User password: | Yes |
Output: | Thermo printer & USB (optional extra) |
Program
Program/Temp (°C) | Solid 121°C | Hollow 121°C | Porus 121°C | Solid 134°C | Hollow 134°C | Porus 134°C |
---|---|---|---|---|---|---|
Pressure (KPA) | 110 | 110 | 110 | 210 | 210 | 210 |
Sterilisation Time (min) | 20 | 20 | 20 | 4 | 4 | 4 |
Program | Prion | User Defined | BD/Helix Test | Vacuum Test | Clean |
---|---|---|---|---|---|
Temp (°C) | 134 | custom | 134 | n/a | 105 |
Pressure (KPA) | 210 | custom | 210 | -80 | 20 |
Time (min) | 19 | custom | 3.5 | 15 | 5 |
Installation
The Vet Direct Autoclave 22L can all be fully automated (auto fill/auto drain) when purchased alongside the Vet Direct Reverse Osmosis Water Purifier (OSMVD).
Extra charges apply and autoclave needs to be located within 2 meters of a standard sink unit.
Please contact Customer Care for the lead time on this item, usually 5 - 6 weeks
